Sizing a Sump Pump: Horsepower, Pit Depth, Discharge Rate
Horsepower is the number on the box and the least useful thing about a pump. What decides whether yours keeps up is inflow, pit volume and how far the water has to be lifted.
- Inflow and lift measured at your pit, not estimated
- No charge for the visit, 48 hours to book it
- 1,500+ homes over 20+ across seven counties
Systems carry a lifetime, fully transferable warranty
The short answer
Size a sump pump by measuring three things: how fast water enters the pit during a real storm, how many gallons the pit holds between the on and off floats, and the total height the pump must lift water to reach the outlet. Then read the pump's own performance chart at that lift height, not at zero.
A pump does not deliver one flow rate. It delivers less and less as the height it has to push water rises, and every manufacturer publishes that relationship as a curve or a table on the box. The number people quote at each other, horsepower, describes the motor rather than the result. Two pumps with identical motors can move noticeably different amounts of water at the same lift, and the same pump moves far less at your house than it does in the sales photo. Sizing is reading your own numbers off that chart.
The Chicago variable is inflow. Dense glacial clay does not drain, it stores, so water keeps arriving at the footing for hours after the rain stops and a pit here works a long tail rather than a short burst. Lift heights are also higher than people expect, because a full basement plus a rim joist puts the outlet ten feet or more above the pump. Get either wrong and the pump cycles itself to death. The sump pump installation page covers the rest of the assembly the pump sits inside.
How much water does my sump pit actually take?
Inflow is the number nobody measures and the only one that decides whether a pump keeps up. You can get it yourself with a bucket, a tape measure and a phone timer.
Do this during real rain, because a dry-weather reading tells you nothing about the night that matters.
-

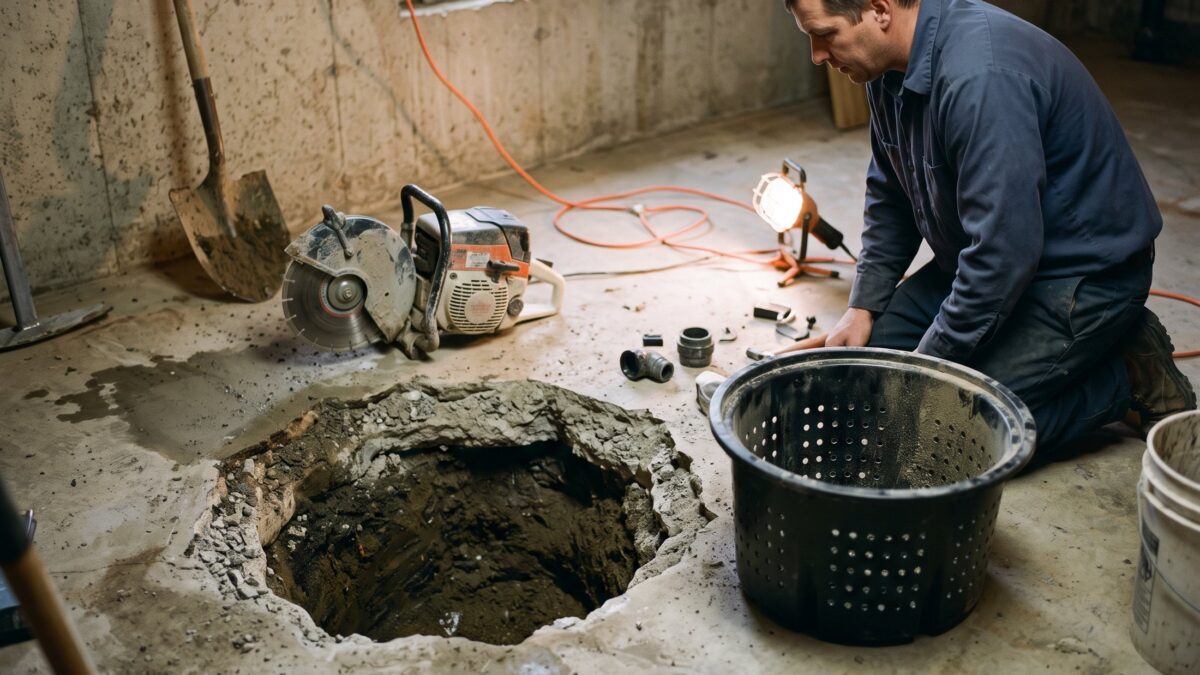

Measure the pit
Get the inside diameter in inches. Pit volume is straight geometry: multiply the radius by itself, then by 3.14, and divide by 231 to get gallons per inch of depth. An 18-inch pit works out to roughly 1.1 gallons per inch.
-
Time the refill during a storm
Let the pump run, then unplug it the moment it shuts off and start a timer. Watch the water climb and stop the timer when it reaches the on level again. Plug the pump straight back in.
-
Turn that into gallons per minute
Multiply the inches the water rose by your gallons-per-inch figure, then divide by the minutes it took. That is your inflow rate in gallons per minute, measured at your house, on the day it counted.
-
Repeat it at the worst moment
Take a second reading during the heaviest hour of the storm, not after. Pumps are sized for the peak, not the average, and in this region the peak often lands well after the rain has moved through.
-
Write the number down
Keep the reading with the date and the storm. Two or three of these across a spring is a genuine record of what your basement does, and it is worth more at a quote than any guess a salesperson makes from the doorway.
Signs your pump is losing the race
- Water still rising in the pit while the pump is running
- Cycling every minute or two through an entire storm
- The pump audibly straining or running hot to the touch
- The backup float lifting during ordinary rain
- Any water on the floor while the pump is working
Before you blame the pump
- Check the check valve: a failed one drops water back down the pipe every cycle
- Confirm the discharge outlet is clear and open
- Look at what the downspouts are delivering to that corner of the house
- Note whether the pit is simply too small to hold a normal cycle
How do I read a pump curve at my lift height?
Every pump ships with a chart of flow against height. Yours is a single point on that chart, and finding it takes a tape measure.
Work from the bottom of the pit outward to the point where the water leaves the pipe.
-
Measure the vertical lift
Run a tape from the pump discharge at the bottom of the pit up to the highest point of the pipe, usually where it leaves through the rim joist. That vertical distance is the bulk of what the pump is fighting.
-
Add the horizontal run
Long horizontal pipe, elbows and a check valve all add resistance that behaves like extra height. A run of many feet out into the yard is not free, and neither is every elbow you turn along the way.
-
Find the pump's own chart
It is printed on the carton, in the manual and on the manufacturer's page, usually as flow at several heights. Use that specific model's numbers. Do not carry a figure over from a different pump because the horsepower matches.
-
Read across at your number
Find your total lift on the chart and read the flow beside it. That figure, not the headline number at zero lift, is what your pump can actually deliver into your discharge line on a bad night.
-
Compare it to your inflow
The chart figure has to beat the inflow you measured, with real margin left over. If it only just clears it, the pump will run nearly continuously through storms and will not last the years you expect it to.
What we size on
- Measured peak inflow, not a rule of thumb
- Total lift including the horizontal run and fittings
- Pit volume between the on and off floats
- Cycle count, because short cycling kills motors
- Room in the pit for a backup pump above the primary
Why bigger is not automatically better
- An oversized pump empties the pit in seconds and restarts constantly
- Every start is the hardest moment in a motor's life
- A fast pump on a small pit is the classic short cycling setup
- The fix is often a deeper pit or a wider float spread, not more motor
What happens if the pump is the wrong size?
Both errors shorten the life of the pump, and they do it in opposite ways. This is why we measure rather than default to the biggest unit on the shelf.
| Undersized for the inflow | Oversized for the pit | |
|---|---|---|
| What you hear | A pump running almost continuously through a storm | Short bursts, over and over, a few seconds each |
| What the water does | Keeps rising in the pit while the pump runs | Drops below the float almost instantly |
| How the motor wears | Overheats from continuous running | Wears from constant restarts |
| Risk during a storm | Water reaches the floor before the pump catches up | Pump fails early, often between storms |
| Effect on a backup | Backup float lifts during ordinary rain | Backup rarely tested by real water at all |
| Effect on the discharge | Line runs full for hours in cold weather | Repeated slugs of water and slamming check valve |
| Usual fix | A pump matched to measured inflow at your lift | A deeper pit or a wider float spread, not more motor |
| What it costs to get wrong | A wet basement plus a replacement pump | A replacement pump years ahead of schedule |
If your pit is too shallow or too narrow to hold a sensible cycle, sizing the pump will not save it. Pit geometry gets fixed when the drainage is opened, which is why we look at how the drain tile feeds the pit before choosing anything.
Want your inflow and lift measured properly? We take both readings at the pit and price the work off published ranges, no charge, inside 48 hours.
How do the numbers differ by house era?
Inflow and lift both track the age of the house. Here is how the four common Illinois basement types tend to behave once you put real numbers on them.
Pre-war bungalows and two-flats
Deep basements mean a long lift, and original clay tile that has silted shut sends water to the pit in a rush once new drainage is in. Pits here are often small crocks that were never meant to buffer a real storm.
Deeper pit, honest lift math
Post-war block ranches
Hollow block cores hold water and release it for hours, so inflow is moderate but relentless. The pump that fails here is the one sized for a short burst rather than a long, steady, low-rate run.
Size for duration
1980s and 90s poured walls
Usually modest inflow through a single crack or a cold joint, with a pit that barely cycles most of the year. Oversizing is the common mistake, and short cycling is what finishes the pump off.
Smaller pump, bigger pit
Newer subdivision homes
Working perimeter drainage feeding a builder-grade pump, often with a long horizontal discharge run out to the property line. That run adds resistance nobody accounted for when the pump was chosen.
Count the horizontal runWhat does the right pump cost?
We publish one number for this work: a sump pump with battery backup runs $2,800 to $4,500 installed, and sizing does not change the price bracket.
| Work | Range | What moves the number |
|---|---|---|
| Sump pump with battery backupinstalled | $2,800–$4,500 | Pit condition, backup capacity, discharge routing |
| Interior drain tileper linear foot | $95–$160 | Length of the run, slab thickness, what has to be moved off the walls |
| Downspout extensions and regradingtypical job | $600–$2,500 | Feet of grade to rebuild, soil hauling |
Sizing changes which model goes in the pit, not what we charge you to put it there, because we quote from published ranges rather than from the unit price of the pump. You can see how that number sits against the rest of our work on the pricing page. 0% for 12 months financing applies to the full job.
When a bigger pump is the wrong answer
A pit that cannot keep up is often telling you something about the water arriving, not about the motor moving it.
The roof is feeding the pit
Downspouts dumping at the foundation put hundreds of gallons into one corner during a single storm, and the pit ends up pumping your own roof water. Extending them and correcting the grade costs $600 to $2,500 and often halves the inflow number you just measured.
Cheapest real fixThe check valve is cheating you
A failed check valve lets the column of water in the discharge pipe fall back into the pit after every cycle, so the pump moves the same gallons repeatedly. It looks exactly like an undersized pump and costs a fraction of one to correct.
Check this firstThe circuit is the limit
A pump on an extension cord, sharing a circuit with a freezer, or on an outlet that trips is not a sizing problem. That belongs to a licensed electrician, and a dedicated circuit should be sorted before anyone talks to you about horsepower.
Not our workTwo pumps beat one big one
On high inflow basements the better answer is often a second pump staged above the first rather than a single large unit. It splits the load, and the upper pump doubles as insurance. See how a stacked backup works.
Stage it insteadQuestions homeowners ask about sump pump sizing
What size sump pump do I need?
The one whose published flow at your measured lift comfortably exceeds the inflow you measured during a real storm. That is a different answer for a bungalow with a ten-foot lift than for a ranch with a shorter run, even when the two basements take on similar water. Measure the pit, time a refill during rain, measure the vertical lift, then read the chart on the pump you are considering.
Is more horsepower always better?
No. Horsepower describes the motor, not how much water arrives at your outlet, and a bigger motor on a small pit creates short cycling that wears the pump out from repeated starts. What matters is the flow the pump can sustain at your specific lift height, and whether the pit holds enough water for a sensible cycle. We would rather set a well matched pump in a properly sized pit than sell you a bigger motor.
How deep should a sump pit be?
Deep enough to sit below the drain tile that feeds it, and wide enough to hold a reasonable volume between the on and off floats plus room for a backup pump above the primary. Shallow builder crocks are the most common problem we find, because they force the pump to start and stop constantly. Pit depth gets set when the drainage goes in, which is the right time to correct it.
Does the discharge pipe size matter?
Yes. Narrowing the pipe, adding elbows or running a long horizontal line all add resistance that the pump feels as extra height to lift against, which pushes you left along the performance chart to a lower flow. Matching the pipe to the pump outlet and keeping the run as direct as the lot allows is free performance. It also matters in winter, when a restricted line is the first to ice up.
How do I know my current pump is undersized?
Watch it during a heavy storm rather than judging it on a dry day. If the water level keeps climbing while the pump is running, if it runs nearly continuously for hours, or if the backup float lifts during ordinary rain, the pump is behind the inflow. If it instead fires for a few seconds every minute or two, the problem is the opposite one and a deeper pit is the fix.
Should I just buy the biggest pump at the store?
It is the most common mistake we correct. An oversized pump drops the water below the float almost instantly, restarts constantly, and the starts are what wear a motor out, so the pump fails years early and usually between storms when nobody notices. Size to your measured numbers instead, and put the money you saved into a backup pump and a discharge line that will not freeze.
The right size still leaves you one power outage away
A perfectly sized pump is an appliance on a house circuit, and the storms that produce your peak inflow are the same storms that take the power down across the suburbs. A backup pump runs off a battery on its own float above the primary. It is the other half of sizing the pit properly, and it is where most of these systems earn their money.
