Urethane Crack Injection in Chicago
The permanent fix for a leaking foundation crack: expanding urethane injected the full depth of the wall, from $450 per crack, done in a morning, warrantied for 10 years.
- Published pricing: $450 to $900 per crack
- Warranty: 10-year on injected cracks
- Most cracks injected in under half a day
10-year warranty
What a proper injection includes
The material matters less than the method. A crack injected halfway is a crack that leaks again next spring, from a slightly different spot.
Crack assessment
Length, width, moisture and movement get checked first, because a structural crack needs more than sealant and we say so.

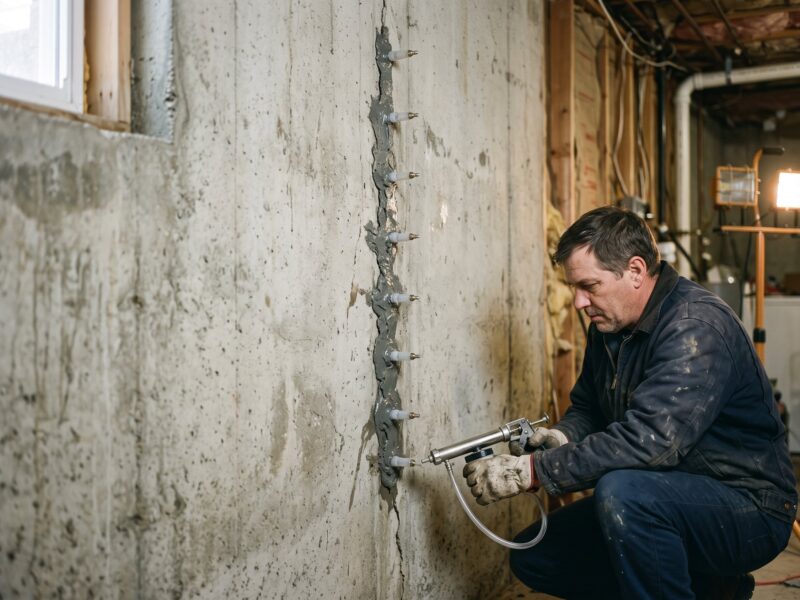

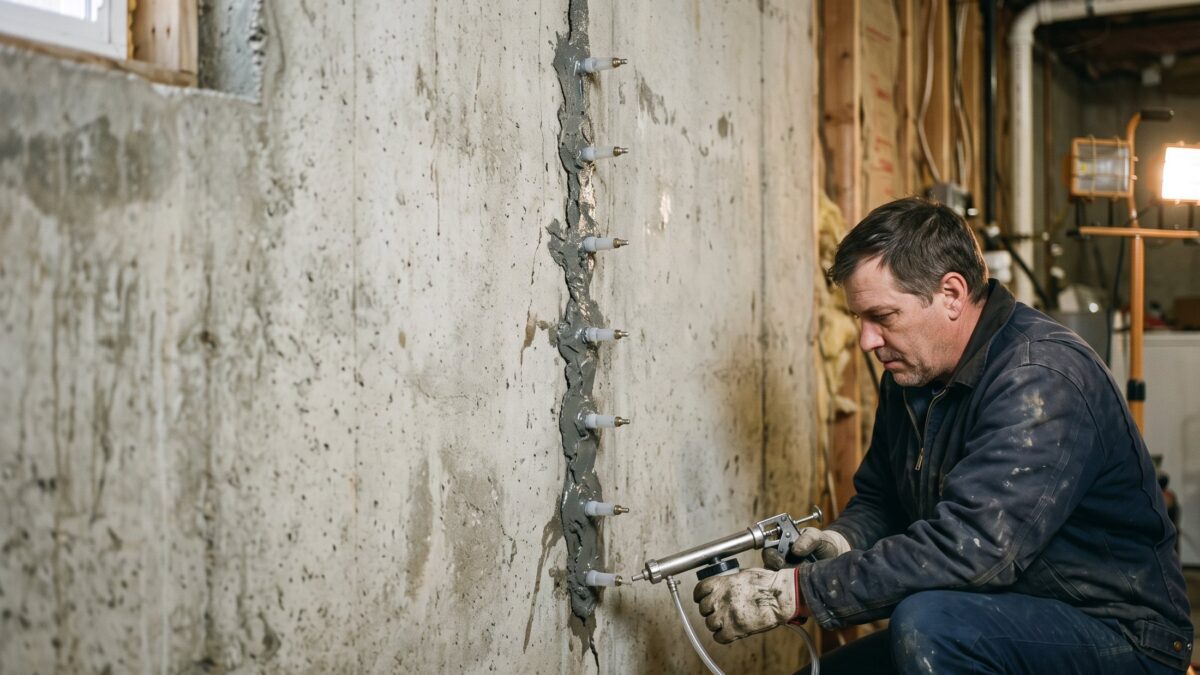

Injection ports
Ports set every few inches along the crack give the urethane entry points that reach the entire fracture, top to bottom.
Surface seal
The face of the crack gets sealed between ports so the resin has nowhere to go but deep into the wall.
Expanding urethane
Injected bottom-up, the resin chases water through every hairline branch and expands to fill the full wall thickness.
The cove check
Where the crack meets the floor, we verify the leak isn't also traveling the cove joint, the classic missed second entry.
Documentation
Photos before and after, the warranty registered to the address, and a note in the file for the day you sell the house.
Why do poured concrete walls crack and leak?
Poured concrete cracks because it shrinks as it cures and because Chicago clay never stops adjusting underneath it. Most vertical cracks appear within the first years of a wall's life at predictable places: window corners, beam pockets, tie-rod lines and the middle of long runs. They start dry, and then a wet spring finds them.
The leak works by pressure. Saturated clay pushes water into the crack's outside face, and the crack becomes a slow pipe through eight or ten inches of wall. Surface patches fail because they cap the inside end of that pipe while the water keeps arriving behind them; urethane works because it fills the pipe itself, expanding until the crack has no interior left to carry water through.
Crack wider than a coin, or horizontal? Read foundation repair first

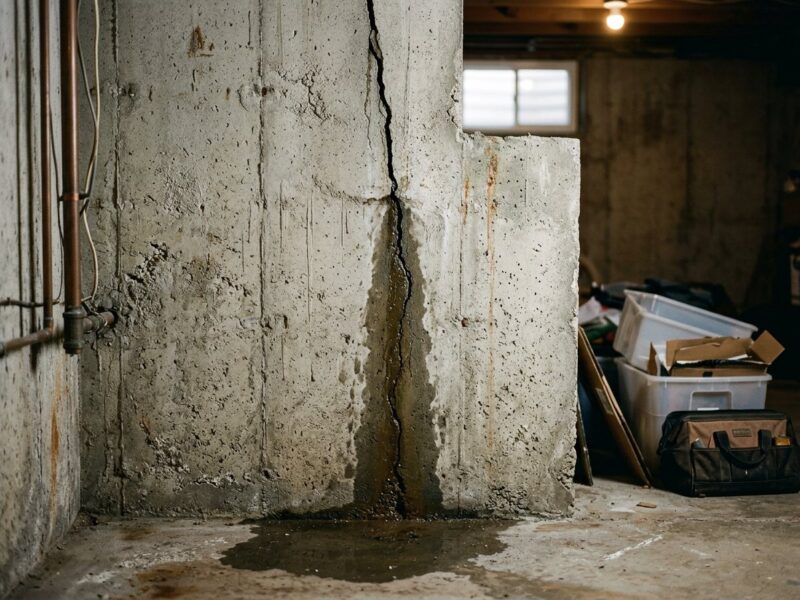

A classic leaker: vertical, hairline, wet after every hard rain.
Urethane or epoxy: which injection does your crack need?
Both are professional injection materials, and companies tend to sell whichever one they stock. The honest answer is that they solve different problems.
| Urethane (what leaks need) | Epoxy (what structure needs) | |
|---|---|---|
| What it does | Expands and stays flexible, sealing water out permanently | Cures rigid, welding the concrete back together |
| Best for | Leaking, non-structural cracks, which is most of them | Cracks that compromise the wall and must transfer load |
| Wet cracks | Loves water; it triggers the expansion | Needs a dry, prepped crack to bond properly |
| Movement | Flexes with seasonal wall movement without re-cracking | Rigid repair can re-crack alongside if the cause remains |
| The catch | Adds no strength; structural cracks need more | Sealing with epoxy alone leaves the leak's cause untreated |
A structural crack gets carbon fiber or bracing plus the seal, and the inspection decides that before any resin is picked.
Crack drawn a water line down your wall? It's a half-day fix at a published price. Get it looked at free.

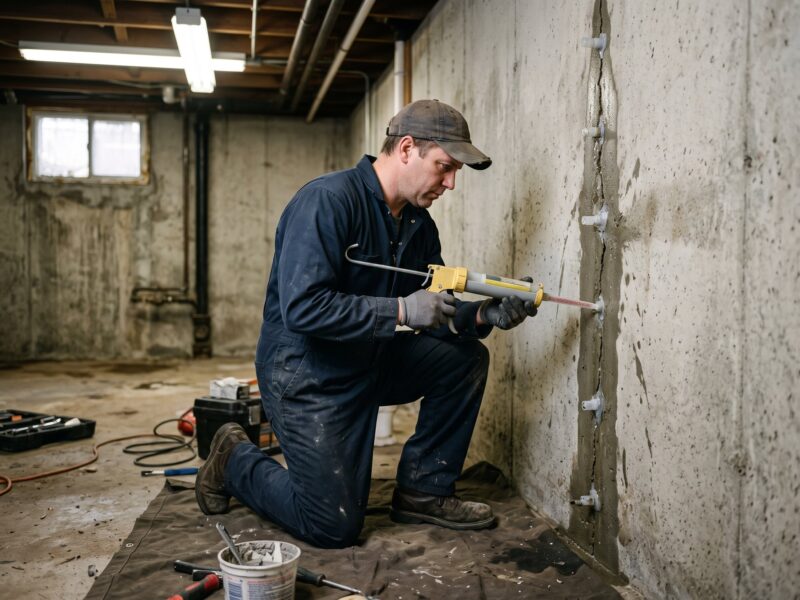

How an injection goes, port to warranty
A standard crack is done in a morning. Multiple cracks usually share a single visit and mobilization.
Assess the crack
Width, pattern and movement get checked, and the structural question answered first: sealer for the leak, or reinforcement plus sealer. Free, within 48 hours.
Day 0Set ports and seal
Ports mount every few inches up the crack and the face seals between them, turning the crack into a closed channel with entry valves.
Hour 1Inject bottom-up
Urethane goes in at the lowest port until it appears at the next one up, then the process climbs the wall, proving full-depth fill as it goes.
Hours 2 to 3Cure, trim, document
The resin expands and cures, ports come off, the surface trims flush, and the 10-year warranty registers to the address with photos.
Same morningHow much does crack injection cost in Chicago?
Urethane injection runs $450 to $900 per crack, with length, width and access to the full height setting the price. Additional cracks injected in the same visit cost less than first ones, since the mobilization is shared.
| Work | Range | What moves the number |
|---|---|---|
| Urethane crack injectionper crack | $450–$900 | Crack length and width, access to the full height |
| Carbon fiber strapsper strap | $600–$1,000 | Wall height, spacing the deflection requires |
| Interior drain tileper linear foot | $95–$160 | Length of the run, slab thickness, what has to be moved off the walls |
If a wall has more cracks than injection makes sense for, the honest fix graduates to drain tile along that wall, and we price the comparison for you. All ranges live in the pricing guide.
Injected by people who fix the failures
A meaningful share of our injection work is re-doing failed ones: hardware-store epoxy caps, half-depth fills, and caulk in a crack's clothing. After 20+ years, the pattern is clear enough that we photograph our port layout and resin returns on every job, so you can see the crack filled top to bottom instead of taking a sticker's word for it.
- Full-depth fill verified port by port as the resin climbs
- Licensed, bonded and insured: $2,000,000 general liability
- 10-year warranty on injected cracks, registered to the address
- The structural call made honestly before any resin is sold
More cracks than a sealer should chase?
When a wall shows a family of leakers, or the block construction rules out injection entirely, sealing crack by crack becomes the expensive path. Interior drain tile along that wall collects everything the clay pushes through it, at a per-foot price that beats a dozen injections.
Interior Drain Tile
Crack injection near you
Serving Chicago and the suburbs: Will, Cook, DuPage, Kane, Kendall, DeKalb and Lee counties.
Crack injection questions, answered straight
How much does foundation crack injection cost in Chicago?
$450 to $900 per crack, driven by length, width and access to the wall's full height. Second and third cracks injected in the same visit price lower than the first, since the setup is shared. The assessment that decides all of it is free.
Is urethane better than epoxy for a leaking crack?
For sealing water out, yes. Urethane expands into the crack's every branch, works in wet conditions, and flexes with seasonal movement. Epoxy is the right material when the crack is structural and the wall needs to be welded back together, and some jobs need reinforcement plus sealing.
How long does crack injection last?
A full-depth urethane injection is a permanent repair for that crack, and ours carries a 10-year warranty registered to the address. What it cannot promise is that a moving foundation won't crack somewhere new, which is why assessment comes before resin.
Can I just use a DIY epoxy kit from the hardware store?
The kits cap the inside face of the crack; the water keeps arriving behind the cap and finds the edge, usually within a couple of seasons. Professional injection fills the full eight to ten inches of wall. We re-do enough kit repairs that we priced the real fix at $450 to make the math easy.
Does injection work on block foundation walls?
No, and anyone injecting a block wall is filling one hollow core out of hundreds. Block walls leak through faces and mortar joints, and they get fixed with drainage: a wall drainage path into interior tile. The inspection tells you which wall type you have and which page of ours applies.
Is a crack that only seeps in spring worth fixing?
Yes, because the seep is rinsing soil fines through the crack and feeding humidity, efflorescence and mold season after season. A one-morning, $450-to-$900 permanent seal beats repainting the wall every other year and explaining the stain at resale.
Seal the crack once, keep the paper
A free assessment within 48 hours, a published per-crack price, and a 10-year warranty registered to the address. One morning, and that stain stops growing.
